定义显示地图（非自建地图）
属于MOD修改，不可以联机，就是对方安装了相同文件也不能联机（开局10秒内会出现无法同步），我目前没有找到解决办法。
我们需要用到Data3.bar里面的mapsetnames.xml、resources.xml、maptypes.xml、mapgamekey.xml。
maptypes.xml是剧情编辑器的地图类型，可改可不改，反正对地图是没有影响的。
mapgamekey.xml是用来定义地图属于哪一个资料片，原版、酋长、亚洲王朝，进入联机房间前的有个允许酋长文明，只要不选中就不能使用酋长资料片的地图。因为不能联机，所以没意义，只是放出来让你了解一下。
<!-- converted from XMB to XML -->
<mapgamekey>
<map name="地图名称"/> 后面什么都不加是原版的，后面加xpack就是酋长资料片的，加ypack为亚洲王朝
<map name="这个是原版的"/>
<map name="这个是酋长的"/>
<map name="这个是亚王的"/>
<map name="amazonia"/>
<map name="ozarks">xpack</map>
<map name="plymouth">xpack</map>
<map name="andes">xpack</map>
<map name="araucania">xpack</map>
<map name="bayou"/>
<map name="bayou2backup"/>
<map name="california">xpack</map>
<map name="caribbean"/>
<map name="carolina"/>
<map name="carolinaLarge"/>
<map name="great lakes"/>
<map name="great lakesbck"/>
<map name="great plains"/>
<map name="great plainsLarge"/>
<map name="Hispaniola"/>
<map name="mercenaries"/>
<map name="native test"/>
<map name="new england"/>
<map name="northwest territory">xpack</map>
<map name="Orinoco">xpack</map>
<map name="painted desert">xpack</map>
<map name="pampas"/>
<map name="patagonia"/>
<map name="rockies"/>
<map name="saguenay"/>
<map name="saguenayLarge"/>
<map name="sonora"/>
<map name="sonoraLarge"/>
<map name="texas"/>
<map name="texasLarge"/>
<map name="unknown"/>
<map name="yucatan"/>
<map name="yukon"/>
<map name="borneo">ypack</map>
<map name="ceylon">ypack</map>
<map name="deccan">ypack</map>
<map name="deccanLarge">ypack</map>
<map name="himalayas">ypack</map>
<map name="himalayasUpper">ypack</map>
<map name="honshu">ypack</map>
<map name="honshuRegicide">ypack</map>
<map name="indochina">ypack</map>
<map name="mongolia">ypack</map>
<map name="siberia">ypack</map>
<map name="siberiaLarge">ypack</map>
<map name="silkRoad">ypack</map>
<map name="silkRoadLarge">ypack</map>
<map name="yellow riverDry">ypack</map>
<map name="yellow riverLarge">ypack</map>
</mapgamekey>
上面都是没意义的东西，下面是重点：

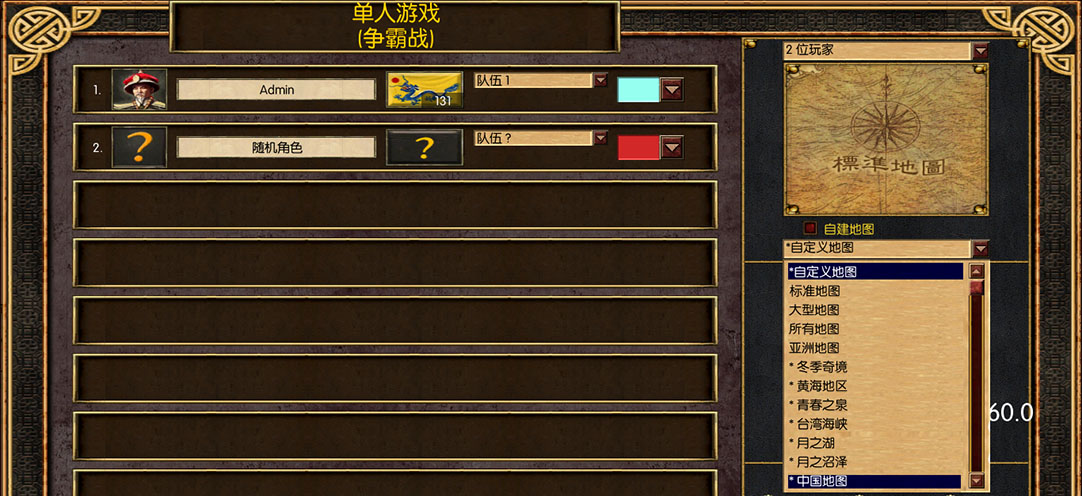

mapsetnames.xml能将Set文件与地图定义到游戏房间内（不用勾选自建地图）
<!-- converted from XMB to XML --> <mapsetnames> <set name="fastrandom"/> <set name="randommaps"/> <set name="Largerandommaps"/> <set name="asianrandom"/> <set name="Custom"/> <!-- mapsetnames.xml一般用来定义Set文件 --> <set name="Set文件名"/> <set name="地图文件名"/> <mpscenarioimagepath name="ui\random_map\scenario"/><!-- 这个是剧情文件的图标 --> </mapsetnames>
resources.xml只能将地图定义到游戏房间内。
有一点比较有趣的的是修改mapsetnames.xml在联机时不会导致CRC不符，也能打开自己定义的地图，可惜开局10秒内还是会不同步
<!-- converted from XMB to XML --> <rmfilecrc> <!-- 不要看见这里有set文件名就认为这几个语句有用，实际上是没有任何作用的。 --><set name="asianrandom">4213687070</set> <set name="fastrandom">858450612</set> <set name="Largerandommaps">1614609835</set> <set name="randommaps">848643543</set><map name="amazonia">292653583</map> <map name="andes">1673769148</map> <map name="araucania">716168091</map> <map name="bayou">1017449742</map> <map name="bayou2backup">118872486</map> <map name="borneo">2988799121</map> <map name="california">2203360616</map> <map name="caribbean">2818947527</map> <map name="carolina">178842968</map> <map name="carolinaLarge">36714904</map> <map name="Ceylon">2805056970</map> <map name="deccan">4003423297</map> <map name="deccanLarge">1702231891</map> <map name="great lakes">2780393609</map> <map name="great lakesbck">3591551805</map> <map name="great plains">1585911643</map> <map name="great plainsLarge">2400347813</map> <map name="himalayas">727925521</map> <map name="himalayasUpper">3080802214</map> <map name="Hispaniola">2333257818</map> <map name="honshu">1882658140</map> <map name="honshuRegicide">2658104258</map> <map name="indochina">2069471575</map> <map name="mercenaries">1557048318</map> <map name="mongolia">3221913270</map> <map name="native test">441942820</map> <map name="new england">4156539956</map> <map name="northwest territory">2302695294</map> <map name="Orinoco">1765041749</map> <map name="ozarks">3441027103</map> <map name="painted desert">2914583187</map> <map name="pampas">677095103</map> <map name="patagonia">571025273</map> <map name="plymouth">85377997</map> <map name="rockies">59627101</map> <map name="saguenay">46583879</map> <map name="saguenayLarge">3437606747</map> <map name="siberia">1572917104</map> <map name="siberiaLarge">72084085</map> <map name="silkRoad">3336990508</map> <map name="silkRoadLarge">529377752</map> <map name="sonora">2596958544</map> <map name="sonoraLarge">66951844</map> <map name="texas">2940354677</map> <map name="texasLarge">2668800725</map> <map name="unknown">1805703687</map> <map name="yellow riverDry">3850453086</map> <map name="yellow riverLarge">1542738559</map> <map name="ypAsianInclude">502391046</map> <map name="ypKOTHInclude">3009971218</map> <map name="yucatan">941600452</map> <map name="yukon">3418916082</map> <map name="[www,aoebbs,net]ChinaMap"/> <map name="[www,aoebbs,net]FountainofYouth"/> <map name="[www,aoebbs,net]LakeOfTheMoon"/> <map name="[www,aoebbs,net]LiaodongPeninsula"/> <map name="[www,aoebbs,net]MarshOfTheMoon"/> <map name="[www,aoebbs,net]TaiwanStrait_war"/> <map name="[www,aoebbs,net]Christmas"/> <map name="[www,aoebbs,net]你要定义的地图名称"/> </rmfilecrc>

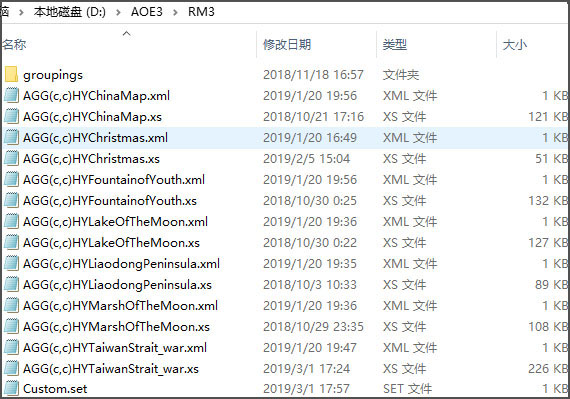

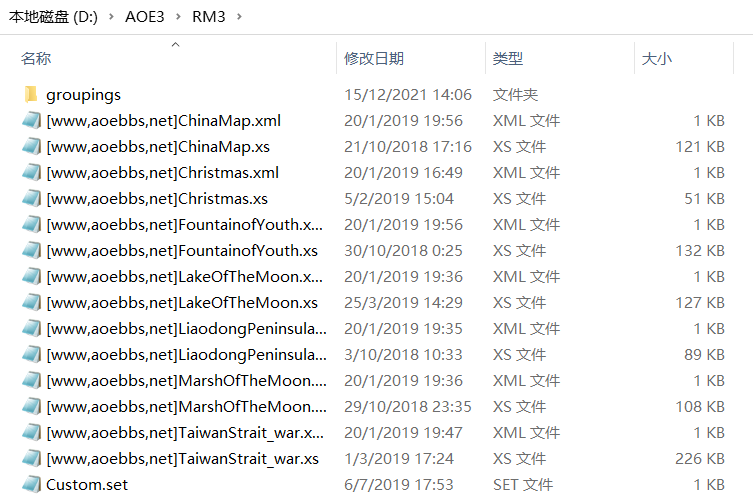

PS：地图文件与Set文件要放到安装帝国3的目录的RM3文件夹。
<?xml version = "1.0" encoding = "UTF-8"?> <mapinfo details = "00501" imagepath = "ui\random_map\yellow_river" displayNameID = "00500" cannotReplace = "" loadDetails="00502" loadBackground="ui\random_map\yellow_river\yellow_river_map"> <loadss>ui\random_map\yellow_river\yellow_river_ss_3</loadss> </mapinfo>
<?xml version = "1.0" encoding = "UTF-8"?> <mapinfo details = "00503" imagepath = "ui\random_map\everglades" displayNameID = "00504" cannotReplace = "" loadDetails ="00505" loadBackground="ui\random_map\everglades\everglades_map"> <loadss>ui\random_map\everglades\everglades_ss_01</loadss> <loadss>ui\random_map\everglades\everglades_ss_02</loadss> <loadss>ui\random_map\everglades\everglades_ss_03</loadss> </mapinfo>
<?xml version = "1.0" encoding = "UTF-8"?> <mapinfo details = "00506" imagepath = "ui\random_map\everglades" displayNameID = "00507" cannotReplace = "" loadDetails="00508" loadBackground="ui\random_map\everglades\everglades_map"> <loadss>ui\random_map\everglades\everglades_ss_01</loadss> <loadss>ui\random_map\everglades\everglades_ss_02</loadss> <loadss>ui\random_map\everglades\everglades_ss_03</loadss> </mapinfo>
<?xml version = "1.0" encoding = "UTF-8"?> <mapinfo details = "00510" imagepath = "ui\random_map\great_lakes" displayNameID = "00509" cannotReplace = "" loadDetails="00511" loadBackground="ui\random_map\great_lakes\great_lakes_map"> <loadss>ui\random_map\great_lakes\great_lakes_ss_02</loadss> </mapinfo>
<?xml version="1.0" encoding="UTF-8"?> <randomMaps displayNameID="00512" imagepath="ui\random_map\standard_maps" helpTextID="00513" cannotReplace=""> <map>[www,aoebbs,net]ChinaMap</map> <map>[www,aoebbs,net]FountainofYouth</map> <map>[www,aoebbs,net]LakeOfTheMoon</map> <map>[www,aoebbs,net]LiaodongPeninsula</map> <map>[www,aoebbs,net]MarshOfTheMoon</map> <map>[www,aoebbs,net]Christmas</map> </randomMaps>
<String _locID="00500">* 中国地图</String> <String _locID="00501"><font=Arial 32>Map：<color=0,1,1>中国地图</color> 作者：<icon="(16)(ui/ingame/resource_skill_16)"/><color=0,1,1>小羽</color>\nE-mail:<color=0,1,1>[email protected]</color>\nQQ群：<color=0,1,1>85442352（MOD群）</color>\n论坛:<color=1,1,0>https://</color><color=0,1,1>www.aoebbs.net</color>\n \n \n \n \n注：<color=1,0,0>安装路径必须为全英文或数字路径，否则会被系统踢出局。\nThe Age of Empires III installation path must be English or numeric path, notherwise you will be kicked out of the game.</color>\n \n \n制作日期：<color=0,1,1>2018.03.08-2018.09.08</color>\n更新日期：<color=0,1,1>2022.05.29</color>\n \n \n<color=0,255,255>关于本地图特殊宝藏：探险家宝藏在击败附近守护者后，己方单位大于3才能解救。</font>\n<font=Arial 48><icon=(256)(ui\random_map\yellow_river\yellow_river_ss_3)></font></String> <String _locID="00502"><color=0,1,0><icon="(16)(ui/ingame/resource_skill_16)">[www.aoebbs.net]地图——中国地图\n拥有广阔海岸及丰富资源的中国沿海地区，让您有许多机会来扩张领土及制造冲突。沿海地区有一条贸易路线经过。\n<color=1,0,0>注：<b>安装帝国的目录不是全英文或数字路径</b>，或者安装了某些存在错误的自定义触发程序(trigger3/typetest.xml)，开局后会被系统踢出局。\n<color=0,255,255>作者：小羽 E-mail：[email protected] \n更新日期：2022.05.29 17:00:00\nForum-->https://www.aoebbs.net</color></color></color></String> <String _locID="00503"><color=0,255,255>Map：青春之泉 作者：<icon="(16)(ui/ingame/resource_skill_16)">小羽\n https://www.aoebbs.net\n QQ群：85442352（MOD群）\n注：<color=255,0,0>安装路径必须为全英文或数字路径，否则会被系统踢出局。\nThe Age of Empires III installation path must be English or numeric path, \notherwise you will be kicked out of the game.<color=0,255,255>\n制作日期：2018.10.23-2018.10.29\n地图安装位置：我的文档/My Game/Age of Empires 3/RM3\n<color=0,255,255>关于本地图的特殊内容：\n 固定炮：杀死藏骨集团守护者后20秒内可以占领。\n 湖心岛：受伤单位进入湖心岛后会自动恢复生命。\n 青春之泉：青春之泉被摧毁后湖心岛恢复生命将会失效，并且所有玩家的单位生命值-50，而且20分钟后，所有单位将会出现衰老现象，只能在地图存活20分钟。</String> <String _locID="00504">* 青春之泉</String> <String _locID="00505"><color=0,255,0><icon="(16)(ui/ingame/resource_skill_16)">[www.aoebbs.net]——The Fountain of Youth?（青春之泉？）\n传说中月之湖是一个具有魔力的古老湖泊，当您与您的军队来到这个地方就已经受到这个湖泊的影响了......\n月之湖北部资源丰富，并且有1条贸易路线经过；南部则是藏骨集团的领地，有一个固定大炮的军事据点。在地图边缘地带可能会找到西米诺尔人或印加人的村庄。\n<color=255,0,0>注：安装帝国的目录不是全英文或数字路径，开局后会被系统踢出局。\n<color=0,255,255>作者：小羽 \n更新日期：2018.10.29 00:23:20</String> <String _locID="00506"><color=0,255,255>Map：月之湖 作者：<icon="(16)(ui/ingame/resource_skill_16)">小羽\n https://www.aoebbs.net\n QQ群：85442352（MOD群）\n注：<color=255,0,0>安装路径必须为全英文或数字路径，否则会被系统踢出局。\nThe Age of Empires III installation path must be English or numeric path, \notherwise you will be kicked out of the game.<color=0,255,255>\n制作日期：2018.10.23-2018.10.29</String> <String _locID="00507">* 月之湖</String> <String _locID="00508"><color=0,255,0><icon="(16)(ui/ingame/resource_skill_16)">[www.aoebbs.net]——Lake of the Moon（月之湖）\n月之湖北部资源丰富，并且有1条贸易路线经过；南部则是藏骨集团的领地，有一个固定大炮的军事据点。在地图边缘地带可能会找到西米诺尔人或印加人的村庄。\n<color=255,0,0>注：安装帝国的目录不是全英文或数字路径，开局后会被系统踢出局。\n<color=0,255,255>作者：小羽 \n更新日期：2018.10.29 00:23:20]]</String> <String _locID="00509">* 冬季奇境</String> <String _locID="00510">冬季奇境: 玩家在充满欢乐的冬季奇境中奋战。</String> <String _locID="00511">玩家在这个充满欢乐的地图上奋战，破坏了冬季奇境的祥和气氛。\n在地图四周与地图中心布满了礼物箱，派村民采集即可获得资源。\n彩蛋：占领贸易路线后会召唤隐藏单位。\nModify by XiaoYu \n\nQQ Group：85442352</String> <String _locID="00512">*自定义地图</String> <String _locID="00513">中国地图、月之湖、台湾海峡、冬季奇境等地图。</String>
