添加属于自己MOD的关于窗口

在游戏主界面的帮助与工具里面有个关于选项，按了能调出一个窗口，我们可以复制一个，然后制作一个关于自己MOD的窗口。

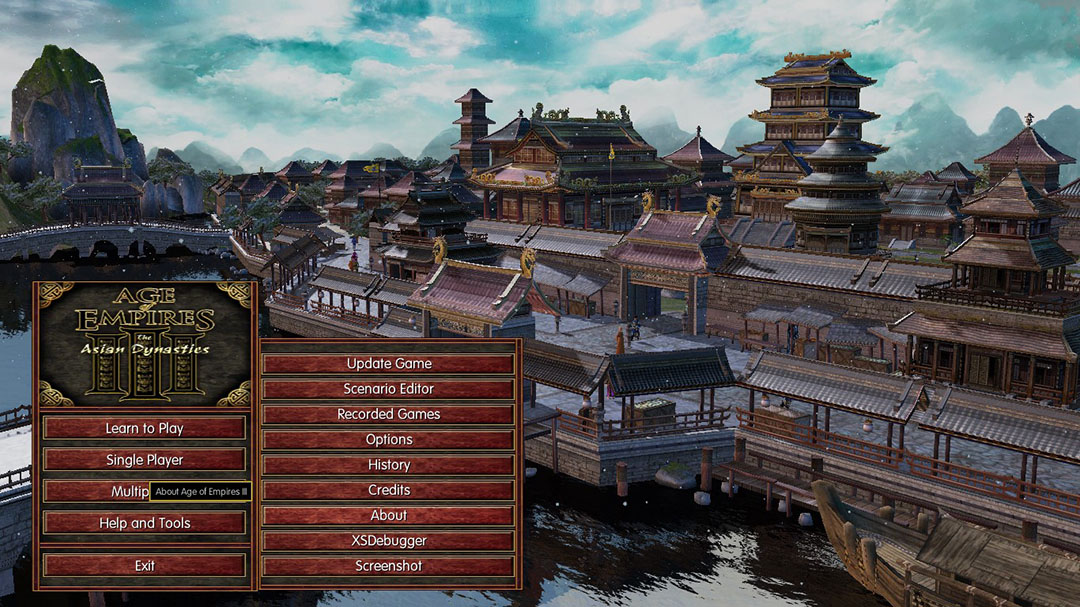

在游戏主界面选中帮助及工具按钮后，会有一个关于的按钮选项，按了后会弹出一个版权信息的窗口。

我们可以直接复制官方设定的这些按钮及窗口，然后粘贴改名，改UI位置，制作成新的按钮与窗口。

首先你要明白游戏主界面的UI是哪个，在Gamey.cgf说过，游戏主界面的xml文件是可以不通过修改主程序来修改的，官方定义的主界面为uipregamenew.xml。
提取这个xml就不用我说了吧。

这个是官方版本的uipregamenew.xml，这是

传送门。

uipregamenew.xml - 记事本	____	□	X
文件(F) 编辑(E) 格式(O) 查看(V) 帮助(H)

<!-- converted from XMB to XML --> <layout> <gadget name="MainMenu" type="gadget" size1024="0 0 1024 768" background="" z="30"> <gadget name="BackgroundMainButtons" type="gadget" background="ui\pregame\pregame_menu_main_ypack" size1024="9 332 265 844" clampbackground="" z="30"/> <gadget name="MainMenuOptions" type="gadget" size1024="21 456 253 725" z="40"> <gadget name="LearnToPlayButton" type="stateButton" size1024="40 515 233 547" bevelbutton="" z="14" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$20622$ To Play <command>gadgetReal("LearnSubMenu") gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") gadgetUnReal("CreditsSubMenu") gadgetUnReal("MultiplayerSubMenu") gadgetUnReal("GrandConquestSubMenu") gadgetUnReal("HelpAndToolsSubMenu") </command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="SinglePlayerButton" type="stateButton" size1024="40 555 233 587" bevelbutton="" z="13" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$19827$ Player <command>gadgetReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") gadgetUnReal("CreditsSubMenu") gadgetUnReal("MultiplayerSubMenu") gadgetUnReal("LearnSubMenu") gadgetUnReal("GrandConquestSubMenu") gadgetUnReal("HelpAndToolsSubMenu") </command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="MultiplayerButton" type="stateButton" size1024="40 595 233 627" bevelbutton="" z="11" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$19828$ <command>gadgetReal("MultiplayerSubMenu")gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") gadgetUnReal("CreditsSubMenu") gadgetUnReal("LearnSubMenu") gadgetUnReal("GrandConquestSubMenu") gadgetUnReal("HelpAndToolsSubMenu") </command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndToolsButton" type="stateButton" size1024="40 635 233 667" bevelbutton="" z="11" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$35538$ and Tools <command>gadgetReal("HelpAndToolsSubMenu") gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") gadgetUnReal("CreditsSubMenu") gadgetUnReal("GrandConquestSubMenu") gadgetUnReal("MultiplayerSubMenu") gadgetUnReal("LearnSubMenu") </command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="ExitButton" type="stateButton" size1024="40 689 233 721" bevelbutton="" z="16" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$19831$ <command>exit(true)</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> </gadget> <gadget name="LearnSubMenu" type="gadget" size1024="240 312 496 475" hidden="" z="20"> <gadget name="LearnToPlayButton" type="stateButton" size1024="40 515 233 547" bevelbutton="" z="5" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="$$35535$ basic and advanced features of the game"> $$20622$ To Play <command>gadgetUnReal("LearnSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="LearnSubMenu-Top" type="gadget" size1024="240 507 496 523" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="Learn-TutorialButton" type="stateButton" size1024="240 523 496 555" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35543$ the basics of a Realtime Strategy Game"> $$19825$ the Basics <command>loadTutorial("age 3 tutorial\age3tutorial1", 0, "master_basics_load", 43013, true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="Learn-CustomButton" type="stateButton" size1024="240 555 496 587" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35545$ are familiar with RTS games, and just want to see what's new in AOEIII."> $$35544$ a Game <command>loadTutorial("age 3 tutorial\age3tutorial2", 0, "try_game_load", 43014, true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="LearnSubMenu-Bottom" type="gadget" size1024="240 587 496 603" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="SinglePlayerSubMenu" type="gadget" size1024="240 513 496 613" hidden="" z="10"> <gadget name="SinglePlayerButton" type="stateButton" size1024="40 555 233 587" bevelbutton="" z="5" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="$$35536$ a story-driven series of scenarios or play a random map game against computer opponents"> $$19827$ Player <command>gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="SinglePlayerSubMenu-Top" type="gadget" size1024="240 507 496 523" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="CampaignButton" type="stateButton" size1024="240 523 496 555" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$48823$ an AOEIII Campaign"> $$19826$ <command>gadgetReal("CampaignSubMenu")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="Practice-CustomButton" type="stateButton" size1024="240 555 496 587" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35547$ a random map game against computer opponents"> $$21088$ <command>doSPSetup()</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CustomScenario-CustomButton" type="stateButton" size1024="240 587 496 619" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35549$ a Custom Scenario"> $$35548$ Scenario <command>gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") uiOpenScenarioBrowser</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="LoadSaved-CustomButton" type="stateButton" size1024="240 619 496 651" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35550$ a Game that was Saved Previously"> $$19837$ Saved Game <command>gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") uiOpenSavedGameBrowser</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="SinglePlayerSubMenu-Bottom" type="gadget" size1024="240 651 496 667" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="CampaignSubMenu" type="gadget" size1024="496 513 752 613" hidden="" z="10"> <gadget name="CampaignSubMenu-Top" type="gadget" size1024="496 507 752 523" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="OriginalCampaignButton" type="stateButton" size1024="496 523 752 555" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35546$ the main AOEIII campaign"> $$36936$ <command>gadgetUnReal("CampaignSubMenu") startCampaign("campaign\blood ice steel\bloodicesteel.xml")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CampaignSubMenu-NoXPack" type="gadget" size1024="496 555 752 603" z="10"> <gadget name="YPackCampaignButton1" type="stateButton" size1024="496 555 752 587" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$60005$ the AOEIII ypack campaign"> $$60006$ <command>gadgetUnReal("CampaignSubMenu") startCampaign("campaign\wonders\ChinaIndiaJapan.xml")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CampaignSubMenu-Bottom1" type="gadget" size1024="496 587 752 603" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="CampaignSubMenu-WithXPack" type="gadget" size1024="496 555 752 637" z="10"> <gadget name="XPackCampaignButton" type="stateButton" size1024="496 555 752 587" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$43994$ the AOEIII xpack campaign"> $$43995$ <command>gadgetUnReal("CampaignSubMenu") startCampaign("campaign\war chief\warchief.xml")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="YPackCampaignButton2" type="stateButton" size1024="496 587 752 619" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$60005$ the AOEIII ypack campaign"> $$60006$ <command>gadgetUnReal("CampaignSubMenu") startCampaign("campaign\wonders\ChinaIndiaJapan.xml")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CampaignSubMenu-Bottom2" type="gadget" size1024="496 619 752 637" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> </gadget> <gadget name="GrandConquestSubMenu" type="gadget" size1024="427 550 639 653" hidden="" z="20"> <gadget name="GrandConquestButton" type="stateButton" size1024="255 561 447 593" bevelbutton="" z="12" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> Grand Conquest <command>gadgetUnReal("GrandConquestSubMenu")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquestSubMenu-Top" type="gadget" size1024="447 561 639 577" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10" texturecoords="0 0 .75 1"/> <gadget name="GrandConquest-CreateSPGame" type="stateButton" size1024="447 577 639 609" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Create a new single player Grand Conquest game"> New Game <command>modeEnter("GCSettings")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquest-LoadSPGame" type="stateButton" size1024="447 609 639 641" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Load a previously saved Grand Conquest game"> Load Saved Game <command>uiOpenGrandConquestBrowser</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquest-HostMPGame" type="stateButton" size1024="447 641 639 673" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Host a multiplayer game to be played over a LAN or through a direct IP connection"> Host LAN Game <command/> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquest-JoinMPGame" type="stateButton" size1024="447 673 639 705" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Join a multiplayer game to be played over a LAN or through a direct IP connection"> Join LAN Game <command/> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquest-ESOGame" type="stateButton" size1024="447 705 639 737" bevelbutton="" z="12" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Log into Ensemble's Online Service and play against total noobtards over the internet."> Play Online <command/> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquestSubMenu-Bottom" type="gadget" size1024="447 737 639 753" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="12" texturecoords="0 0 .75 1"/> </gadget> <gadget name="MultiplayerSubMenu" type="gadget" size1024="240 587 496 684" hidden="" z="20"> <gadget name="MultiplayerSubMenu-MultiplayerButton" type="stateButton" size1024="40 595 233 627" bevelbutton="" z="5" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="$$35537$ a random map game with human players"> $$19828$ <command>gadgetUnReal("MultiplayerSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="MultiplayerSubMenu-Top" type="gadget" size1024="240 544 496 560" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="Multiplayer-SinglePlayerButton" type="stateButton" size1024="240 560 496 592" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35551$ over the Internet using Ensemble Studios Online"> $$43301$ Online <command>gadgetUnReal("MultiplayerSubMenu") doMPSetup(true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="Multiplayer-MultiPlayerButton" type="stateButton" size1024="240 592 496 624" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35552$ over a Local Area Network"> $$19024$ <command>gadgetUnReal("MultiplayerSubMenu") doMPSetup(false)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="MultiplayerSubMenu-Bottom" type="gadget" size1024="240 624 496 640" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="HelpAndToolsSubMenu" type="gadget" size1024="240 433 496 724" hidden="" z="20"> <gadget name="HelpAndToolsSubMenu-HelpAndToolsButton" type="stateButton" size1024="40 635 233 667" bevelbutton="" z="5" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="$$35539$ III Tools"> $$35538$ and Tools <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndToolsSubMenu-Top" type="gadget" size1024="240 427 496 443" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="HelpAndTools-UpdateGameButton" type="stateButton" size1024="240 443 496 475" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35554$ if there are any game updates available"> $$35553$ Game <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") startAutoPatcher(true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-EditorButton" type="stateButton" size1024="240 475 496 507" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35556$ your own scenarios"> $$35555$ Editor <command>startRandomGame(true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-ReplayButton" type="stateButton" size1024="240 507 496 539" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$41755$ previously recorded games"> $$41754$ Games <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") uiOpenRecordGameBrowser</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-OptionsButton" type="stateButton" size1024="240 539 496 571" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35557$ your game options"> $$19829$ <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") modeEnter("Options")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-HistoryButton" type="stateButton" size1024="240 571 496 603" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35560$ the History of the AOEIII time-period"> $$19789$ <command>gadgetUnReal("CreditsSubMenu") modeEnter("History")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-CreditsButton" type="stateButton" size1024="240 603 496 635" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$49030$ the Credits"> $$19841$ <command>gadgetReal("CreditsSubMenu")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-AboutButton" type="stateButton" size1024="240 635 496 667" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$18447$ AOEIII"> $$35562$ <!--关闭"HelpAndToolsSubMenu"，关闭"CreditsSubMenu"，打开"AboutBox"--> <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") gadgetReal("AboutBox")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndToolsSubMenu-Bottom" type="gadget" size1024="240 667 496 683" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="CreditsSubMenu" type="gadget" size1024="496 593 752 693" hidden="" z="10"> <gadget name="CreditsSubMenu-Top" type="gadget" size1024="496 587 752 603" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="OriginalCreditsButton" type="stateButton" size1024="496 603 752 635" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35561$ the credits for Age of Empires III"> $$49031$ III <command>gadgetUnReal("CreditsSubMenu") modeEnter("Credits")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CreditsSubMenu-NoXPack" type="gadget" size1024="496 635 752 717" z="10"> <gadget name="YPackCreditsButton1" type="stateButton" size1024="496 635 752 667" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$60066$ the credits for Age of Empires III: The YPack"> $$60065$ <command>gadgetUnReal("CreditsSubMenu") modeEnter("CreditsY")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CreditsSubMenu-Bottom1" type="gadget" size1024="496 667 752 683" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="CreditsSubMenu-WithXPack" type="gadget" size1024="496 635 752 717" z="10"> <gadget name="XPackCreditsButton" type="stateButton" size1024="496 635 752 667" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$49033$ the credits for Age of Empires III: The WarChiefs"> $$49032$ <command>gadgetUnReal("CreditsSubMenu") modeEnter("CreditsX")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="YPackCreditsButton2" type="stateButton" size1024="496 667 752 699" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$60066$ the credits for Age of Empires III: The YPack"> $$60065$ <command>gadgetUnReal("CreditsSubMenu") modeEnter("CreditsY")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CreditsSubMenu-Bottom2" type="gadget" size1024="496 699 752 715" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> </gadget> <gadget name="Login" type="dialog" size1024="284 277 607 452" background="Egypt God Background" hidden=""> <gadget name="UserName" type="textField" textfont="Arial nobold nodrop" textfontsize="12" textcolor="256 256 256" textcenterhoriz="" textcentervert="" size1024="304 307 587 327">User Name:</gadget> <gadget name="Password" type="textField" textfont="Arial nobold nodrop" textfontsize="12" textcolor="256 256 256" textcenterhoriz="" textcentervert="" size1024="304 337 587 357">Password:</gadget> <gadget name="LoginButton" type="button" foreground="Egypt Button Background" textfont="Arial nobold nodrop" textfontsize="12" textcolor="256 256 256" textcenterhoriz="" textcentervert="" bevelbutton="" size1024="395 427 495 447"> Log In <command>gadgetUnReal("Login")</command> </gadget> </gadget> </gadget> <gadget name="AboutBox" type="dialog" windowzstyle="" size1024="0 0 1024 768" backgroundcolor="0 0 0" backgroundalpha="0.5" hidden="" dialogdefaultbuttonindex="0" dialogescapebuttonindex="0"> <gadget name="AboutBox-Background" type="gadget" size1024="162 64 880 696" background="ui\ingame\ingame_ui_parch" tilebackground="" z="1"> <gadget tilebackgroundhoriz="" name="objectivesdialog-BordersTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_top" size1024="248 32 784 96"/> <gadget tilebackgroundhoriz="" name="objectivesdialog-BordersBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottom" size1024="248 664 784 728"/> <gadget tilebackgroundvert="" name="objectivesdialog-BordersLeft" type="gadget" background="ui\ingame\ui_postgame_heavyborder_left" size1024="120 160 184 672"/> <gadget tilebackgroundvert="" name="objectivesdialog-BordersRight" type="gadget" background="ui\ingame\ui_postgame_heavyborder_right" size1024="848 160 912 672"/> <gadget name="objectivesdialog-BordersLeftTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_topleft" size1024="120 32 248 160" z="11"/> <gadget name="objectivesdialog-BordersLeftBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottomleft" size1024="120 600 248 728" z="12"/> <gadget name="objectivesdialog-BordersRightBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottomright" size1024="784 600 912 728" z="12"/> <gadget name="objectivesdialog-BordersRightTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_topright" size1024="784 32 912 160" z="12"/> </gadget> <gadget name="AboutBox-Close" type="stateButton" size1024="436 646 596 678" bevelbutton="" z="101" statebuttonuseinternalstates="" textfont="PregameButtons" textfontsize="18" textcolor="255 255 255" textcenterhoriz="" textcentervert="" texturecoords="0 0 0.627450980392157 1"> $$18457$ 关闭"AboutBox"，即为关闭这个窗口自己本身--> <command>gadgetUnReal("AboutBox")</command> <stateentry background="ui\core_ui\button_large_normal"/> <stateentry background="ui\core_ui\button_large_clicked"/> <stateentry background="ui\core_ui\button_large_high"/> <stateentry background="ui\core_ui\button_large_disable"/> </gadget> <gadget name="AboutBox-versiontext" type="formatText" textfont="AboutBoxVersion" textfontsize="18" textcolor="0 0 0" size1024="183 86 836 114" textwrapon="" formattextusedatareplace="">$$18459$ of Mythology, version gameVersion</gadget> <gadget name="AboutBox-copyrighttext" textwrapon="" type="formatText" textfont="AboutBoxCopyright" textfontsize="18" textcolor="0 0 0" size1024="183 120 836 147">$$18460$$</gadget> <gadget name="AboutBox-warningtext" textwrapon="" type="formatText" textfont="AboutBoxWarning" textfontsize="16" textcolor="0 0 0" size1024="183 248 837 338">$$19290$: This computer program is protected by copyright law and international treaties. Unauthorized reproduction or distribution of this program, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under the law.</gadget> <gadget name="AboutBox-longlegaltext" textwrapon="" type="formatText" textfont="AboutBoxWarning" textfontsize="16" textcolor="0 0 0" size1024="183 151 839 241">$$42279$, Age of Empires, DirectX, Ensemble Studios, the Microsoft Game Studios logo, and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.</gadget> <gadget name="AboutBox-Grannytext" textwrapon="" type="formatText" textfont="AboutBoxEntry" textfontsize="14" textcolor="0 0 0" size1024="183 372 836 409">$$18463$$</gadget> <gadget name="AboutBox-Divxtext" textwrapon="" type="formatText" textfont="AboutBoxEntry" textfontsize="14" textcolor="0 0 0" size1024="183 410 836 447">$$18462$ Bink Video. Copyright (C) 1997-2002 by RAD Game Tools, Inc.</gadget> <gadget name="AboutBox-libjpegtext" textwrapon="" type="formatText" textfont="AboutBoxEntry" textfontsize="14" textcolor="0 0 0" size1024="183 531 836 583">$$20113$ software is based in part on the work of the Independent JPEG Group.</gadget> <gadget name="AboutBox-Havok" textwrapon="" type="formatText" textfont="AboutBoxEntry" textfontsize="14" textcolor="0 0 0" size1024="183 448 836 530">$$37435$ Havok</gadget> <gadget name="AboutBox-PID" textwrapon="" type="formatText" textfont="AboutBoxPID" textfontsize="14" textcolor="0 0 0" size1024="183 589 836 641" formattextusedatareplace="">$$20116$ ID ProductID</gadget> <gadget name="AboutBox-ScreenSeparator" type="gadget" size1024="178 587 846 588" background="ui\core_ui\metal_trim_bottom" z="11"/> <gadget name="AboutBox-ScreenSeparator2" type="gadget" size1024="181 352 849 353" background="ui\core_ui\metal_trim_bottom" z="11"/> </gadget> <gadget name="VersionString" type="gadget" size1024="45 743 230 767" textcolor="255 255 255" textfont="AboutBoxEntry" textfontsize="14" z="100"/> <gadget name="RegisteredString" type="gadget" size1024="22 201 400 228" textcolor="255 255 255" textfont="AboutBoxEntry" textfontsize="14" z="100"/> </layout>

灰色背景就是“关于”按钮以及版权信息的窗口语句，不用我告诉你怎样做了吧？没错，就是复制，粘贴，改调用名与UI坐标。

传送门还是做个传送门好一点，方便写网页的时候看效果。			传送门2

红色的是复制粘贴的语句，蓝色的是重点，黄色的自己体会。

uipregamenew.xml - 记事本	____	□	X
文件(F) 编辑(E) 格式(O) 查看(V) 帮助(H)

<!-- converted from XMB to XML --> <layout> <gadget name="MainMenu" type="gadget" size1024="0 0 1024 768" background="" z="30"> <gadget name="BackgroundMainButtons" type="gadget" background="ui\pregame\pregame_menu_main_ypack" size1024="9 332 265 844" clampbackground="" z="30"/> <gadget name="MainMenuOptions" type="gadget" size1024="21 456 253 725" z="40"> <gadget name="LearnToPlayButton" type="stateButton" size1024="40 515 233 547" bevelbutton="" z="14" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$20622$ To Play <command>gadgetReal("LearnSubMenu") gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") gadgetUnReal("CreditsSubMenu") gadgetUnReal("MultiplayerSubMenu") gadgetUnReal("GrandConquestSubMenu") gadgetUnReal("HelpAndToolsSubMenu") </command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="SinglePlayerButton" type="stateButton" size1024="40 555 233 587" bevelbutton="" z="13" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$19827$ Player <command>gadgetReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") gadgetUnReal("CreditsSubMenu") gadgetUnReal("MultiplayerSubMenu") gadgetUnReal("LearnSubMenu") gadgetUnReal("GrandConquestSubMenu") gadgetUnReal("HelpAndToolsSubMenu") </command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="MultiplayerButton" type="stateButton" size1024="40 595 233 627" bevelbutton="" z="11" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$19828$ <command>gadgetReal("MultiplayerSubMenu")gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") gadgetUnReal("CreditsSubMenu") gadgetUnReal("LearnSubMenu") gadgetUnReal("GrandConquestSubMenu") gadgetUnReal("HelpAndToolsSubMenu") </command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndToolsButton" type="stateButton" size1024="40 635 233 667" bevelbutton="" z="11" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$35538$ and Tools <command>gadgetReal("HelpAndToolsSubMenu") gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") gadgetUnReal("CreditsSubMenu") gadgetUnReal("GrandConquestSubMenu") gadgetUnReal("MultiplayerSubMenu") gadgetUnReal("LearnSubMenu") </command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="ExitButton" type="stateButton" size1024="40 689 233 721" bevelbutton="" z="16" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$19831$ <command>exit(true)</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> </gadget> <gadget name="LearnSubMenu" type="gadget" size1024="240 312 496 475" hidden="" z="20"> <gadget name="LearnToPlayButton" type="stateButton" size1024="40 515 233 547" bevelbutton="" z="5" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="$$35535$ basic and advanced features of the game"> $$20622$ To Play <command>gadgetUnReal("LearnSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="LearnSubMenu-Top" type="gadget" size1024="240 507 496 523" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="Learn-TutorialButton" type="stateButton" size1024="240 523 496 555" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35543$ the basics of a Realtime Strategy Game"> $$19825$ the Basics <command>loadTutorial("age 3 tutorial\age3tutorial1", 0, "master_basics_load", 43013, true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="Learn-CustomButton" type="stateButton" size1024="240 555 496 587" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35545$ are familiar with RTS games, and just want to see what's new in AOEIII."> $$35544$ a Game <command>loadTutorial("age 3 tutorial\age3tutorial2", 0, "try_game_load", 43014, true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="LearnSubMenu-Bottom" type="gadget" size1024="240 587 496 603" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="SinglePlayerSubMenu" type="gadget" size1024="240 513 496 613" hidden="" z="10"> <gadget name="SinglePlayerButton" type="stateButton" size1024="40 555 233 587" bevelbutton="" z="5" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="$$35536$ a story-driven series of scenarios or play a random map game against computer opponents"> $$19827$ Player <command>gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="SinglePlayerSubMenu-Top" type="gadget" size1024="240 507 496 523" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="CampaignButton" type="stateButton" size1024="240 523 496 555" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$48823$ an AOEIII Campaign"> $$19826$ <command>gadgetReal("CampaignSubMenu")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="Practice-CustomButton" type="stateButton" size1024="240 555 496 587" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35547$ a random map game against computer opponents"> $$21088$ <command>doSPSetup()</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CustomScenario-CustomButton" type="stateButton" size1024="240 587 496 619" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35549$ a Custom Scenario"> $$35548$ Scenario <command>gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") uiOpenScenarioBrowser</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="LoadSaved-CustomButton" type="stateButton" size1024="240 619 496 651" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35550$ a Game that was Saved Previously"> $$19837$ Saved Game <command>gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") uiOpenSavedGameBrowser</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="SinglePlayerSubMenu-Bottom" type="gadget" size1024="240 651 496 667" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="CampaignSubMenu" type="gadget" size1024="496 513 752 613" hidden="" z="10"> <gadget name="CampaignSubMenu-Top" type="gadget" size1024="496 507 752 523" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="OriginalCampaignButton" type="stateButton" size1024="496 523 752 555" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35546$ the main AOEIII campaign"> $$36936$ <command>gadgetUnReal("CampaignSubMenu") startCampaign("campaign\blood ice steel\bloodicesteel.xml")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CampaignSubMenu-NoXPack" type="gadget" size1024="496 555 752 603" z="10"> <gadget name="YPackCampaignButton1" type="stateButton" size1024="496 555 752 587" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$60005$ the AOEIII ypack campaign"> $$60006$ <command>gadgetUnReal("CampaignSubMenu") startCampaign("campaign\wonders\ChinaIndiaJapan.xml")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CampaignSubMenu-Bottom1" type="gadget" size1024="496 587 752 603" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="CampaignSubMenu-WithXPack" type="gadget" size1024="496 555 752 637" z="10"> <gadget name="XPackCampaignButton" type="stateButton" size1024="496 555 752 587" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$43994$ the AOEIII xpack campaign"> $$43995$ <command>gadgetUnReal("CampaignSubMenu") startCampaign("campaign\war chief\warchief.xml")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="YPackCampaignButton2" type="stateButton" size1024="496 587 752 619" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$60005$ the AOEIII ypack campaign"> $$60006$ <command>gadgetUnReal("CampaignSubMenu") startCampaign("campaign\wonders\ChinaIndiaJapan.xml")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CampaignSubMenu-Bottom2" type="gadget" size1024="496 619 752 637" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> </gadget> <gadget name="GrandConquestSubMenu" type="gadget" size1024="427 550 639 653" hidden="" z="20"> <gadget name="GrandConquestButton" type="stateButton" size1024="255 561 447 593" bevelbutton="" z="12" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> Grand Conquest <command>gadgetUnReal("GrandConquestSubMenu")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquestSubMenu-Top" type="gadget" size1024="447 561 639 577" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10" texturecoords="0 0 .75 1"/> <gadget name="GrandConquest-CreateSPGame" type="stateButton" size1024="447 577 639 609" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Create a new single player Grand Conquest game"> New Game <command>modeEnter("GCSettings")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquest-LoadSPGame" type="stateButton" size1024="447 609 639 641" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Load a previously saved Grand Conquest game"> Load Saved Game <command>uiOpenGrandConquestBrowser</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquest-HostMPGame" type="stateButton" size1024="447 641 639 673" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Host a multiplayer game to be played over a LAN or through a direct IP connection"> Host LAN Game <command/> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquest-JoinMPGame" type="stateButton" size1024="447 673 639 705" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Join a multiplayer game to be played over a LAN or through a direct IP connection"> Join LAN Game <command/> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquest-ESOGame" type="stateButton" size1024="447 705 639 737" bevelbutton="" z="12" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Log into Ensemble's Online Service and play against total noobtards over the internet."> Play Online <command/> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquestSubMenu-Bottom" type="gadget" size1024="447 737 639 753" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="12" texturecoords="0 0 .75 1"/> </gadget> <gadget name="MultiplayerSubMenu" type="gadget" size1024="240 587 496 684" hidden="" z="20"> <gadget name="MultiplayerSubMenu-MultiplayerButton" type="stateButton" size1024="40 595 233 627" bevelbutton="" z="5" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="$$35537$ a random map game with human players"> $$19828$ <command>gadgetUnReal("MultiplayerSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="MultiplayerSubMenu-Top" type="gadget" size1024="240 544 496 560" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="Multiplayer-SinglePlayerButton" type="stateButton" size1024="240 560 496 592" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35551$ over the Internet using Ensemble Studios Online"> $$43301$ Online <command>gadgetUnReal("MultiplayerSubMenu") doMPSetup(true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="Multiplayer-MultiPlayerButton" type="stateButton" size1024="240 592 496 624" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35552$ over a Local Area Network"> $$19024$ <command>gadgetUnReal("MultiplayerSubMenu") doMPSetup(false)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="MultiplayerSubMenu-Bottom" type="gadget" size1024="240 624 496 640" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="HelpAndToolsSubMenu" type="gadget" size1024="240 433 496 724" hidden="" z="20"> <gadget name="HelpAndToolsSubMenu-HelpAndToolsButton" type="stateButton" size1024="40 635 233 667" bevelbutton="" z="5" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="$$35539$ III Tools"> $$35538$ and Tools <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndToolsSubMenu-Top" type="gadget" size1024="240 427 496 443" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="HelpAndTools-UpdateGameButton" type="stateButton" size1024="240 443 496 475" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35554$ if there are any game updates available"> $$35553$ Game <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") startAutoPatcher(true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-EditorButton" type="stateButton" size1024="240 475 496 507" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35556$ your own scenarios"> $$35555$ Editor <command>startRandomGame(true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-ReplayButton" type="stateButton" size1024="240 507 496 539" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$41755$ previously recorded games"> $$41754$ Games <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") uiOpenRecordGameBrowser</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-OptionsButton" type="stateButton" size1024="240 539 496 571" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35557$ your game options"> $$19829$ <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") modeEnter("Options")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-HistoryButton" type="stateButton" size1024="240 571 496 603" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35560$ the History of the AOEIII time-period"> $$19789$ <command>gadgetUnReal("CreditsSubMenu") modeEnter("History")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-CreditsButton" type="stateButton" size1024="240 603 496 635" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$49030$ the Credits"> $$19841$ <command>gadgetReal("CreditsSubMenu")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-AboutButton" type="stateButton" size1024="240 635 496 667" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$18447$ AOEIII"> $$35562$ <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") gadgetReal("AboutBox")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-AboutMODButton" type="stateButton" size1024="240 667 496 699" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$00200$ This MOD"> $$00201$ MOD <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") gadgetReal("AboutMODBox")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndToolsSubMenu-Bottom" type="gadget" size1024="240 667 496 683" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="CreditsSubMenu" type="gadget" size1024="496 593 752 693" hidden="" z="10"> <gadget name="CreditsSubMenu-Top" type="gadget" size1024="496 587 752 603" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="OriginalCreditsButton" type="stateButton" size1024="496 603 752 635" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35561$ the credits for Age of Empires III"> $$49031$ III <command>gadgetUnReal("CreditsSubMenu") modeEnter("Credits")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CreditsSubMenu-NoXPack" type="gadget" size1024="496 635 752 717" z="10"> <gadget name="YPackCreditsButton1" type="stateButton" size1024="496 635 752 667" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$60066$ the credits for Age of Empires III: The YPack"> $$60065$ <command>gadgetUnReal("CreditsSubMenu") modeEnter("CreditsY")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CreditsSubMenu-Bottom1" type="gadget" size1024="496 667 752 683" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="CreditsSubMenu-WithXPack" type="gadget" size1024="496 635 752 717" z="10"> <gadget name="XPackCreditsButton" type="stateButton" size1024="496 635 752 667" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$49033$ the credits for Age of Empires III: The WarChiefs"> $$49032$ <command>gadgetUnReal("CreditsSubMenu") modeEnter("CreditsX")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="YPackCreditsButton2" type="stateButton" size1024="496 667 752 699" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$60066$ the credits for Age of Empires III: The YPack"> $$60065$ <command>gadgetUnReal("CreditsSubMenu") modeEnter("CreditsY")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CreditsSubMenu-Bottom2" type="gadget" size1024="496 699 752 715" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> </gadget> <gadget name="Login" type="dialog" size1024="284 277 607 452" background="Egypt God Background" hidden=""> <gadget name="UserName" type="textField" textfont="Arial nobold nodrop" textfontsize="12" textcolor="256 256 256" textcenterhoriz="" textcentervert="" size1024="304 307 587 327">User Name:</gadget> <gadget name="Password" type="textField" textfont="Arial nobold nodrop" textfontsize="12" textcolor="256 256 256" textcenterhoriz="" textcentervert="" size1024="304 337 587 357">Password:</gadget> <gadget name="LoginButton" type="button" foreground="Egypt Button Background" textfont="Arial nobold nodrop" textfontsize="12" textcolor="256 256 256" textcenterhoriz="" textcentervert="" bevelbutton="" size1024="395 427 495 447"> Log In <command>gadgetUnReal("Login")</command> </gadget> </gadget> </gadget> <gadget name="AboutBox" type="dialog" windowzstyle="" size1024="0 0 1024 768" backgroundcolor="0 0 0" backgroundalpha="0.5" hidden="" dialogdefaultbuttonindex="0" dialogescapebuttonindex="0"> <gadget name="AboutBox-Background" type="gadget" size1024="162 64 880 696" background="ui\ingame\ingame_ui_parch" tilebackground="" z="1"> <gadget tilebackgroundhoriz="" name="objectivesdialog-BordersTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_top" size1024="248 32 784 96"/> <gadget tilebackgroundhoriz="" name="objectivesdialog-BordersBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottom" size1024="248 664 784 728"/> <gadget tilebackgroundvert="" name="objectivesdialog-BordersLeft" type="gadget" background="ui\ingame\ui_postgame_heavyborder_left" size1024="120 160 184 672"/> <gadget tilebackgroundvert="" name="objectivesdialog-BordersRight" type="gadget" background="ui\ingame\ui_postgame_heavyborder_right" size1024="848 160 912 672"/> <gadget name="objectivesdialog-BordersLeftTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_topleft" size1024="120 32 248 160" z="11"/> <gadget name="objectivesdialog-BordersLeftBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottomleft" size1024="120 600 248 728" z="12"/> <gadget name="objectivesdialog-BordersRightBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottomright" size1024="784 600 912 728" z="12"/> <gadget name="objectivesdialog-BordersRightTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_topright" size1024="784 32 912 160" z="12"/> </gadget> <gadget name="AboutBox-Close" type="stateButton" size1024="436 646 596 678" bevelbutton="" z="101" statebuttonuseinternalstates="" textfont="PregameButtons" textfontsize="18" textcolor="255 255 255" textcenterhoriz="" textcentervert="" texturecoords="0 0 0.627450980392157 1"> $$18457$ <command>gadgetUnReal("AboutBox")</command> <stateentry background="ui\core_ui\button_large_normal"/> <stateentry background="ui\core_ui\button_large_clicked"/> <stateentry background="ui\core_ui\button_large_high"/> <stateentry background="ui\core_ui\button_large_disable"/> </gadget> <gadget name="AboutBox-versiontext" type="formatText" textfont="AboutBoxVersion" textfontsize="18" textcolor="0 0 0" size1024="183 86 836 114" textwrapon="" formattextusedatareplace="">$$18459$ of Mythology, version gameVersion</gadget> <gadget name="AboutBox-copyrighttext" textwrapon="" type="formatText" textfont="AboutBoxCopyright" textfontsize="18" textcolor="0 0 0" size1024="183 120 836 147">$$18460$$</gadget> <gadget name="AboutBox-warningtext" textwrapon="" type="formatText" textfont="AboutBoxWarning" textfontsize="16" textcolor="0 0 0" size1024="183 248 837 338">$$19290$: This computer program is protected by copyright law and international treaties. Unauthorized reproduction or distribution of this program, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under the law.</gadget> <gadget name="AboutBox-longlegaltext" textwrapon="" type="formatText" textfont="AboutBoxWarning" textfontsize="16" textcolor="0 0 0" size1024="183 151 839 241">$$42279$, Age of Empires, DirectX, Ensemble Studios, the Microsoft Game Studios logo, and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.</gadget> <gadget name="AboutBox-Grannytext" textwrapon="" type="formatText" textfont="AboutBoxEntry" textfontsize="14" textcolor="0 0 0" size1024="183 372 836 409">$$18463$$</gadget> <gadget name="AboutBox-Divxtext" textwrapon="" type="formatText" textfont="AboutBoxEntry" textfontsize="14" textcolor="0 0 0" size1024="183 410 836 447">$$18462$ Bink Video. Copyright (C) 1997-2002 by RAD Game Tools, Inc.</gadget> <gadget name="AboutBox-libjpegtext" textwrapon="" type="formatText" textfont="AboutBoxEntry" textfontsize="14" textcolor="0 0 0" size1024="183 531 836 583">$$20113$ software is based in part on the work of the Independent JPEG Group.</gadget> <gadget name="AboutBox-Havok" textwrapon="" type="formatText" textfont="AboutBoxEntry" textfontsize="14" textcolor="0 0 0" size1024="183 448 836 530">$$37435$ Havok</gadget> <gadget name="AboutBox-PID" textwrapon="" type="formatText" textfont="AboutBoxPID" textfontsize="14" textcolor="0 0 0" size1024="183 589 836 641" formattextusedatareplace="">$$20116$ ID ProductID</gadget> <gadget name="AboutBox-ScreenSeparator" type="gadget" size1024="178 587 846 588" background="ui\core_ui\metal_trim_bottom" z="11"/> <gadget name="AboutBox-ScreenSeparator2" type="gadget" size1024="181 352 849 353" background="ui\core_ui\metal_trim_bottom" z="11"/> </gadget> <gadget name="AboutMODBox" type="dialog" windowzstyle="" size1024="0 0 1024 768" backgroundcolor="0 0 0" backgroundalpha="0.5" hidden="" dialogdefaultbuttonindex="0" dialogescapebuttonindex="0"> <gadget name="AboutBox-Background" type="gadget" size1024="162 64 880 696" background="ui\ingame\ingame_ui_parch" tilebackground="" z="1"> <gadget tilebackgroundhoriz="" name="objectivesdialog-BordersTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_top" size1024="248 32 784 96"/> <gadget tilebackgroundhoriz="" name="objectivesdialog-BordersBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottom" size1024="248 664 784 728"/> <gadget tilebackgroundvert="" name="objectivesdialog-BordersLeft" type="gadget" background="ui\ingame\ui_postgame_heavyborder_left" size1024="120 160 184 672"/> <gadget tilebackgroundvert="" name="objectivesdialog-BordersRight" type="gadget" background="ui\ingame\ui_postgame_heavyborder_right" size1024="848 160 912 672"/> <gadget name="objectivesdialog-BordersLeftTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_topleft" size1024="120 32 248 160" z="11"/> <gadget name="objectivesdialog-BordersLeftBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottomleft" size1024="120 600 248 728" z="12"/> <gadget name="objectivesdialog-BordersRightBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottomright" size1024="784 600 912 728" z="12"/> <gadget name="objectivesdialog-BordersRightTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_topright" size1024="784 32 912 160" z="12"/> </gadget> <gadget name="AboutBox-Close" type="stateButton" size1024="436 646 596 678" bevelbutton="" z="101" statebuttonuseinternalstates="" textfont="PregameButtons" textfontsize="18" textcolor="255 255 255" textcenterhoriz="" textcentervert="" texturecoords="0 0 0.627450980392157 1"> $$18457$ <command>gadgetUnReal("AboutMODBox")</command> <stateentry background="ui\core_ui\button_large_normal"/> <stateentry background="ui\core_ui\button_large_clicked"/> <stateentry background="ui\core_ui\button_large_high"/> <stateentry background="ui\core_ui\button_large_disable"/> </gadget> <gadget name="AboutBox-text1" type="formatText" textfont="AboutBoxVersion" textfontsize="18" textcolor="0 0 0" size1024="183 86 836 114" textwrapon="" formattextusedatareplace="">$$00202$$</gadget> <gadget name="AboutBox-text2" type="formatText" textfont="AboutBoxVersion" textfontsize="18" textcolor="0 0 0" size1024="183 120 836 547" textwrapon="" formattextusedatareplace="">$$00203$$</gadget> <gadget name="AboutBox-ScreenSeparator" type="gadget" size1024="178 587 846 588" background="ui\core_ui\metal_trim_bottom" z="11"/> <gadget name="AboutBox-ScreenSeparator2" type="gadget" size1024="181 352 849 353" background="ui\core_ui\metal_trim_bottom" z="11"/> </gadget> <gadget name="VersionString" type="gadget" size1024="45 743 230 767" textcolor="255 255 255" textfont="AboutBoxEntry" textfontsize="14" z="100"/> <gadget name="RegisteredString" type="gadget" size1024="22 201 400 228" textcolor="255 255 255" textfont="AboutBoxEntry" textfontsize="14" z="100"/> </layout>

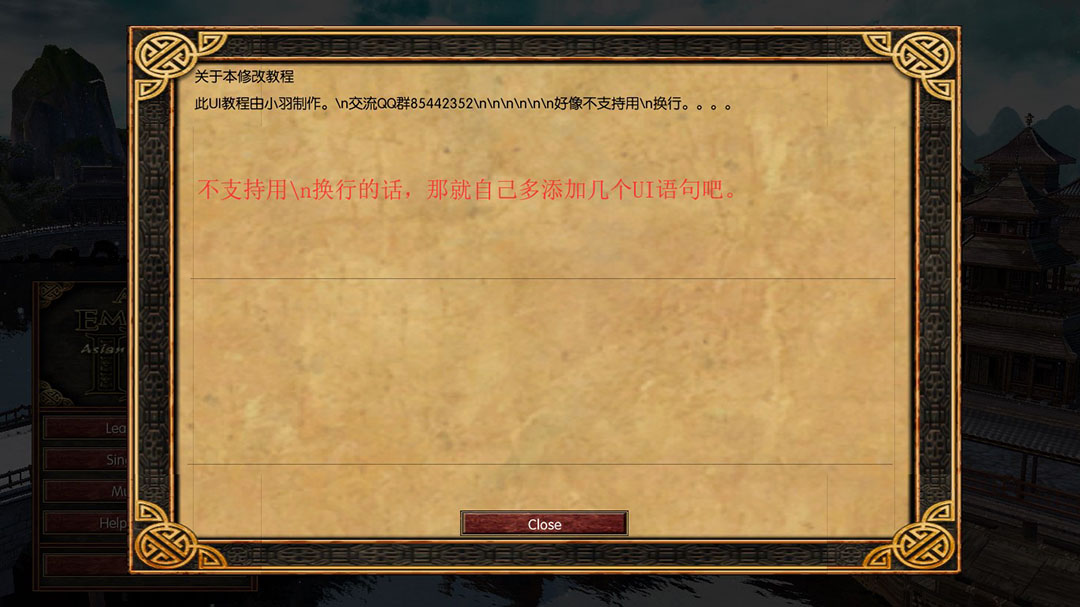

		<gadget name="AboutBox-text1" type="formatText" textfont="AboutBoxVersion" textfontsize="18" textcolor="0 0 0" size1024="183 86 836 114" textwrapon="" formattextusedatareplace="">$$00202$$</gadget>
		<gadget name="AboutBox-text2" type="formatText" textfont="AboutBoxVersion" textfontsize="18" textcolor="0 0 0" size1024="183 120 836 547" textwrapon="" formattextusedatareplace="">$$00203$$</gadget>
这两句是用来写文本的，不过直接写在这里不太美观，使用stringID比较好。

randommapstringsy.xml - 记事本	____	□	X
文件(F) 编辑(E) 格式(O) 查看(V) 帮助(H)

<String _locID="00200">关于这个MOD</String> <String _locID="00201">关于本MOD</String> <String _locID="00202">关于本修改教程</String> <String _locID="00203">此UI教程由小羽制作。\n交流群85442352\n\n\n\n\n\n好像不支持用\n换行。。。。</String>

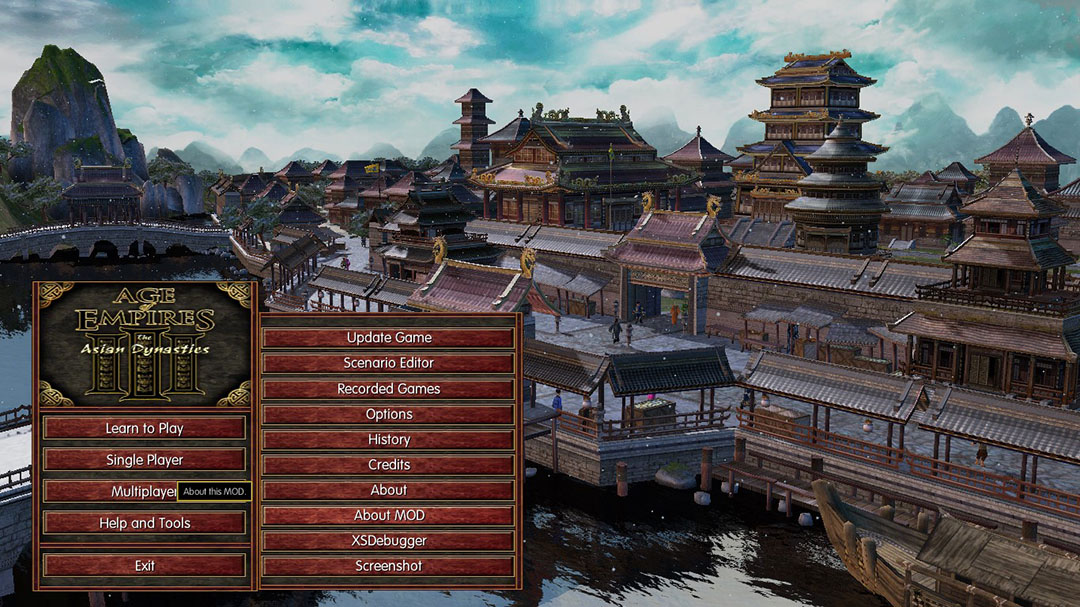

PS：我的截图与这个教程还是有一点不一样的，你也看见了，多了个XSDebugger与Screenshot，下面的内容与本教程无关这是作者的UI，也算是有一点点关系吧。

这个是小羽的uipregamenew.xml - 记事本	____	□	X
文件(F) 编辑(E) 格式(O) 查看(V) 帮助(H)

<!-- converted from XMB to XML --> <layout> <gadget name="MainMenu" type="gadget" size1024="0 0 1024 768" background="" z="30"> <gadget name="BackgroundMainButtons" type="gadget" background="ui\pregame\pregame_menu_main_ypack" size1024="9 342 265 854" clampbackground="" z="30"/> <gadget name="MainMenuOptions" type="gadget" size1024="21 456 253 725" z="40"> <gadget name="LearnToPlayButton" type="stateButton" size1024="40 525 233 557" bevelbutton="" z="14" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$20622$ To Play <command>gadgetReal("LearnSubMenu") gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") gadgetUnReal("CreditsSubMenu") gadgetUnReal("MultiplayerSubMenu") gadgetUnReal("GrandConquestSubMenu") gadgetUnReal("HelpAndToolsSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="SinglePlayerButton" type="stateButton" size1024="40 565 233 597" bevelbutton="" z="13" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$19827$ Player <command>gadgetReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") gadgetUnReal("CreditsSubMenu") gadgetUnReal("MultiplayerSubMenu") gadgetUnReal("LearnSubMenu") gadgetUnReal("GrandConquestSubMenu") gadgetUnReal("HelpAndToolsSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="MultiplayerButton" type="stateButton" size1024="40 605 233 637" bevelbutton="" z="11" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$19828$ <command>gadgetReal("MultiplayerSubMenu")gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") gadgetUnReal("CreditsSubMenu") gadgetUnReal("LearnSubMenu") gadgetUnReal("GrandConquestSubMenu") gadgetUnReal("HelpAndToolsSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndToolsButton" type="stateButton" size1024="40 645 233 677" bevelbutton="" z="11" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$35538$ and Tools <command>gadgetReal("HelpAndToolsSubMenu") gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") gadgetUnReal("CreditsSubMenu") gadgetUnReal("GrandConquestSubMenu") gadgetUnReal("MultiplayerSubMenu") gadgetUnReal("LearnSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="ExitButton" type="stateButton" size1024="40 699 233 731" bevelbutton="" z="16" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> $$19831$ <command>exit(true)</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> </gadget> <gadget name="LearnSubMenu" type="gadget" size1024="240 312 496 475" hidden="" z="20"> <gadget name="LearnToPlayButton" type="stateButton" size1024="40 515 233 547" bevelbutton="" z="5" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="$$35535$ basic and advanced features of the game"> $$20622$ To Play <command>gadgetUnReal("LearnSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="LearnSubMenu-Top" type="gadget" size1024="240 507 496 523" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="Learn-TutorialButton" type="stateButton" size1024="240 523 496 555" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35543$ the basics of a Realtime Strategy Game"> $$19825$ the Basics <command>loadTutorial("age 3 tutorial\age3tutorial1", 0, "master_basics_load", 43013, true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="Learn-CustomButton" type="stateButton" size1024="240 555 496 587" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35545$ are familiar with RTS games, and just want to see what's new in AOEIII."> $$35544$ a Game <command>loadTutorial("age 3 tutorial\age3tutorial2", 0, "try_game_load", 43014, true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="LearnSubMenu-Bottom" type="gadget" size1024="240 587 496 603" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="SinglePlayerSubMenu" type="gadget" size1024="240 513 496 613" hidden="" z="10"> <gadget name="SinglePlayerButton" type="stateButton" size1024="40 555 233 587" bevelbutton="" z="5" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="$$35536$ a story-driven series of scenarios or play a random map game against computer opponents"> $$19827$ Player <command>gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="SinglePlayerSubMenu-Top" type="gadget" size1024="240 507 496 523" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="CampaignButton" type="stateButton" size1024="240 523 496 555" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$48823$ an AOEIII Campaign"> $$19826$ <command>gadgetReal("CampaignSubMenu")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="Practice-CustomButton" type="stateButton" size1024="240 555 496 587" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35547$ a random map game against computer opponents"> $$21088$ <command>doSPSetup()</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CustomScenario-CustomButton" type="stateButton" size1024="240 587 496 619" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35549$ a Custom Scenario"> $$35548$ Scenario <command>gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") uiOpenScenarioBrowser</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="LoadSaved-CustomButton" type="stateButton" size1024="240 619 496 651" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35550$ a Game that was Saved Previously"> $$19837$ Saved Game <command>gadgetUnReal("SinglePlayerSubMenu") gadgetUnReal("CampaignSubMenu") uiOpenSavedGameBrowser</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="SinglePlayerSubMenu-Bottom" type="gadget" size1024="240 651 496 667" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="CampaignSubMenu" type="gadget" size1024="496 513 752 613" hidden="" z="10"> <gadget name="CampaignSubMenu-Top" type="gadget" size1024="496 507 752 523" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="OriginalCampaignButton" type="stateButton" size1024="496 523 752 555" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35546$ the main AOEIII campaign"> $$36936$ <command>gadgetUnReal("CampaignSubMenu") startCampaign("campaign\blood ice steel\bloodicesteel.xml")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CampaignSubMenu-NoXPack" type="gadget" size1024="496 555 752 603" z="10"> <gadget name="YPackCampaignButton1" type="stateButton" size1024="496 555 752 587" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$60005$ the AOEIII ypack campaign"> $$60006$ <command>gadgetUnReal("CampaignSubMenu") startCampaign("campaign\wonders\ChinaIndiaJapan.xml")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CampaignSubMenu-Bottom1" type="gadget" size1024="496 587 752 603" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="CampaignSubMenu-WithXPack" type="gadget" size1024="496 555 752 637" z="10"> <gadget name="XPackCampaignButton" type="stateButton" size1024="496 555 752 587" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$43994$ the AOEIII xpack campaign"> $$43995$ <command>gadgetUnReal("CampaignSubMenu") startCampaign("campaign\war chief\warchief.xml")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="YPackCampaignButton2" type="stateButton" size1024="496 587 752 619" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$60005$ the AOEIII ypack campaign"> $$60006$ <command>gadgetUnReal("CampaignSubMenu") startCampaign("campaign\wonders\ChinaIndiaJapan.xml")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CampaignSubMenu-Bottom2" type="gadget" size1024="496 619 752 637" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> </gadget> <gadget name="GrandConquestSubMenu" type="gadget" size1024="427 550 639 653" hidden="" z="20"> <gadget name="GrandConquestButton" type="stateButton" size1024="255 561 447 593" bevelbutton="" z="12" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1"> Grand Conquest <command>gadgetUnReal("GrandConquestSubMenu")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquestSubMenu-Top" type="gadget" size1024="447 561 639 577" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10" texturecoords="0 0 .75 1"/> <gadget name="GrandConquest-CreateSPGame" type="stateButton" size1024="447 577 639 609" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Create a new single player Grand Conquest game"> New Game <command>modeEnter("GCSettings")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquest-LoadSPGame" type="stateButton" size1024="447 609 639 641" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Load a previously saved Grand Conquest game"> Load Saved Game <command>uiOpenGrandConquestBrowser</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquest-HostMPGame" type="stateButton" size1024="447 641 639 673" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Host a multiplayer game to be played over a LAN or through a direct IP connection"> Host LAN Game <command/> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquest-JoinMPGame" type="stateButton" size1024="447 673 639 705" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Join a multiplayer game to be played over a LAN or through a direct IP connection"> Join LAN Game <command/> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquest-ESOGame" type="stateButton" size1024="447 705 639 737" bevelbutton="" z="12" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="Log into Ensemble's Online Service and play against total noobtards over the internet."> Play Online <command/> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="GrandConquestSubMenu-Bottom" type="gadget" size1024="447 737 639 753" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="12" texturecoords="0 0 .75 1"/> </gadget> <gadget name="MultiplayerSubMenu" type="gadget" size1024="240 587 496 684" hidden="" z="20"> <gadget name="MultiplayerSubMenu-MultiplayerButton" type="stateButton" size1024="40 595 233 627" bevelbutton="" z="5" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="$$35537$ a random map game with human players"> $$19828$ <command>gadgetUnReal("MultiplayerSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="MultiplayerSubMenu-Top" type="gadget" size1024="240 544 496 560" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="Multiplayer-SinglePlayerButton" type="stateButton" size1024="240 560 496 592" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35551$ over the Internet using Ensemble Studios Online"> $$43301$ Online <command>gadgetUnReal("MultiplayerSubMenu") doMPSetup(true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="Multiplayer-MultiPlayerButton" type="stateButton" size1024="240 592 496 624" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35552$ over a Local Area Network"> $$19024$ <command>gadgetUnReal("MultiplayerSubMenu") doMPSetup(false)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="MultiplayerSubMenu-Bottom" type="gadget" size1024="240 624 496 640" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="HelpAndToolsSubMenu" type="gadget" size1024="240 433 496 724" hidden="" z="20"> <gadget name="HelpAndToolsSubMenu-HelpAndToolsButton" type="stateButton" size1024="40 635 233 667" bevelbutton="" z="5" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" texturecoords="0 0 .75 1" mouseovertext="$$35539$ III Tools"> $$35538$ and Tools <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu")</command> <stateentry background="ui\core_ui\button_pregame_menu_normal_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_clicked_ypack"/> <stateentry background="ui\core_ui\button_pregame_menu_active_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndToolsSubMenu-Top" type="gadget" size1024="240 395 496 411" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="HelpAndTools-UpdateGameButton" type="stateButton" size1024="240 411 496 443" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35554$ if there are any game updates available"> $$35553$ Game <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") startAutoPatcher(true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-EditorButton" type="stateButton" size1024="240 443 496 475" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35556$ your own scenarios"> $$35555$ Editor <command>startRandomGame(true)</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-ReplayButton" type="stateButton" size1024="240 475 496 507" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$41755$ previously recorded games"> $$41754$ Games <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") uiOpenRecordGameBrowser</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-OptionsButton" type="stateButton" size1024="240 507 496 539" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35557$ your game options"> $$19829$ <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") modeEnter("Options")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-HistoryButton" type="stateButton" size1024="240 539 496 571" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35560$ the History of the AOEIII time-period"> $$19789$ <command>gadgetUnReal("CreditsSubMenu") modeEnter("History")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-CreditsButton" type="stateButton" size1024="240 571 496 603" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$49030$ the Credits"> $$19841$ <command>gadgetReal("CreditsSubMenu")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-AboutButton" type="stateButton" size1024="240 603 496 635" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$18447$ AOEIII"> $$35562$ <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") gadgetReal("AboutBox")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-AboutMODButton" type="stateButton" size1024="240 635 496 667" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="About this MOD."> About MOD <command>gadgetUnReal("HelpAndToolsSubMenu") gadgetUnReal("CreditsSubMenu") gadgetReal("MODBox")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-XSDebugger" type="stateButton" size1024="240 667 496 699" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="XSDebugger"> XSDebugger <command>gadgetToggle("XSDebugger")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndTools-Screenshot" type="stateButton" size1024="240 699 496 731" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="Screenshot"> Screenshot <command>gadgetReal("ScreenshotDialog")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="HelpAndToolsSubMenu-Bottom" type="gadget" size1024="240 731 496 747" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="CreditsSubMenu" type="gadget" size1024="496 593 752 693" hidden="" z="10"> <gadget name="CreditsSubMenu-Top" type="gadget" size1024="496 587 752 603" background="ui\pregame\dropdown_top_ypack" clampbackground="" z="10"/> <gadget name="OriginalCreditsButton" type="stateButton" size1024="496 603 752 635" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$35561$ the credits for Age of Empires III"> $$49031$ III <command>gadgetUnReal("CreditsSubMenu") modeEnter("Credits")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CreditsSubMenu-NoXPack" type="gadget" size1024="496 635 752 717" z="10"> <gadget name="YPackCreditsButton1" type="stateButton" size1024="496 635 752 667" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$60066$ the credits for Age of Empires III: The YPack"> $$60065$ <command>gadgetUnReal("CreditsSubMenu") modeEnter("CreditsY")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CreditsSubMenu-Bottom1" type="gadget" size1024="496 667 752 683" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> <gadget name="CreditsSubMenu-WithXPack" type="gadget" size1024="496 635 752 717" z="10"> <gadget name="XPackCreditsButton" type="stateButton" size1024="496 635 752 667" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$49033$ the credits for Age of Empires III: The WarChiefs"> $$49032$ <command>gadgetUnReal("CreditsSubMenu") modeEnter("CreditsX")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="YPackCreditsButton2" type="stateButton" size1024="496 667 752 699" bevelbutton="" z="10" statebuttonuseinternalstates="" textfont="MainMenuButtons" textfontsize="18" textcolor="255 255 255" mouseovertext="$$60066$ the credits for Age of Empires III: The YPack"> $$60065$ <command>gadgetUnReal("CreditsSubMenu") modeEnter("CreditsY")</command> <stateentry background="ui\pregame\dropdown_middle_normal_ypack"/> <stateentry background="ui\pregame\dropdown_middle_clicked_ypack"/> <stateentry background="ui\pregame\dropdown_middle_rollover_ypack"/> <stateentry background=""/> </gadget> <gadget name="CreditsSubMenu-Bottom2" type="gadget" size1024="496 699 752 715" background="ui\pregame\dropdown_bottom_ypack" clampbackground="" z="10"/> </gadget> </gadget> <gadget name="Login" type="dialog" size1024="284 277 607 452" background="Egypt God Background" hidden=""> <gadget name="UserName" type="textField" textfont="Arial nobold nodrop" textfontsize="12" textcolor="256 256 256" textcenterhoriz="" textcentervert="" size1024="304 307 587 327">User Name:</gadget> <gadget name="Password" type="textField" textfont="Arial nobold nodrop" textfontsize="12" textcolor="256 256 256" textcenterhoriz="" textcentervert="" size1024="304 337 587 357">Password:</gadget> <gadget name="LoginButton" type="button" foreground="Egypt Button Background" textfont="Arial nobold nodrop" textfontsize="12" textcolor="256 256 256" textcenterhoriz="" textcentervert="" bevelbutton="" size1024="395 427 495 447"> Log In <command>gadgetUnReal("Login")</command> </gadget> </gadget> </gadget> <gadget name="AboutBox" type="dialog" windowzstyle="" size1024="0 0 1024 768" backgroundcolor="0 0 0" backgroundalpha="0.5" hidden="" dialogdefaultbuttonindex="0" dialogescapebuttonindex="0"> <gadget name="AboutBox-Background" type="gadget" size1024="162 64 880 696" background="ui\ingame\ingame_ui_parch" tilebackground="" z="1"> <gadget tilebackgroundhoriz="" name="objectivesdialog-BordersTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_top" size1024="248 32 784 96"/> <gadget tilebackgroundhoriz="" name="objectivesdialog-BordersBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottom" size1024="248 664 784 728"/> <gadget tilebackgroundvert="" name="objectivesdialog-BordersLeft" type="gadget" background="ui\ingame\ui_postgame_heavyborder_left" size1024="120 160 184 672"/> <gadget tilebackgroundvert="" name="objectivesdialog-BordersRight" type="gadget" background="ui\ingame\ui_postgame_heavyborder_right" size1024="848 160 912 672"/> <gadget name="objectivesdialog-BordersLeftTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_topleft" size1024="120 32 248 160" z="11"/> <gadget name="objectivesdialog-BordersLeftBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottomleft" size1024="120 600 248 728" z="12"/> <gadget name="objectivesdialog-BordersRightBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottomright" size1024="784 600 912 728" z="12"/> <gadget name="objectivesdialog-BordersRightTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_topright" size1024="784 32 912 160" z="12"/> </gadget> <gadget name="AboutBox-Close" type="stateButton" size1024="436 646 596 678" bevelbutton="" z="101" statebuttonuseinternalstates="" textfont="PregameButtons" textfontsize="18" textcolor="255 255 255" textcenterhoriz="" textcentervert="" texturecoords="0 0 0.627450980392157 1"> $$18457$ <command>gadgetUnReal("AboutBox")</command> <stateentry background="ui\core_ui\button_large_normal"/> <stateentry background="ui\core_ui\button_large_clicked"/> <stateentry background="ui\core_ui\button_large_high"/> <stateentry background="ui\core_ui\button_large_disable"/> </gadget> <gadget name="AboutBox-versiontext" type="formatText" textfont="AboutBoxVersion" textfontsize="18" textcolor="0 0 0" size1024="183 86 836 114" textwrapon="" formattextusedatareplace="">$$18459$ of Mythology, version gameVersion</gadget> <gadget name="AboutBox-copyrighttext" textwrapon="" type="formatText" textfont="AboutBoxCopyright" textfontsize="18" textcolor="0 0 0" size1024="183 120 836 147">$$18460$$</gadget> <gadget name="AboutBox-warningtext" textwrapon="" type="formatText" textfont="AboutBoxWarning" textfontsize="16" textcolor="0 0 0" size1024="183 248 837 338">$$19290$: This computer program is protected by copyright law and international treaties. Unauthorized reproduction or distribution of this program, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under the law.</gadget> <gadget name="AboutBox-longlegaltext" textwrapon="" type="formatText" textfont="AboutBoxWarning" textfontsize="16" textcolor="0 0 0" size1024="183 151 839 241">$$42279$, Age of Empires, DirectX, Ensemble Studios, the Microsoft Game Studios logo, and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.</gadget> <gadget name="AboutBox-Grannytext" textwrapon="" type="formatText" textfont="AboutBoxEntry" textfontsize="14" textcolor="0 0 0" size1024="183 372 836 409">$$18463$$</gadget> <gadget name="AboutBox-Divxtext" textwrapon="" type="formatText" textfont="AboutBoxEntry" textfontsize="14" textcolor="0 0 0" size1024="183 410 836 447">$$18462$ Bink Video. Copyright (C) 1997-2002 by RAD Game Tools, Inc.</gadget> <gadget name="AboutBox-libjpegtext" textwrapon="" type="formatText" textfont="AboutBoxEntry" textfontsize="14" textcolor="0 0 0" size1024="183 531 836 583">$$20113$ software is based in part on the work of the Independent JPEG Group.</gadget> <gadget name="AboutBox-Havok" textwrapon="" type="formatText" textfont="AboutBoxEntry" textfontsize="14" textcolor="0 0 0" size1024="183 448 836 530">$$37435$ Havok</gadget> <gadget name="AboutBox-PID" textwrapon="" type="formatText" textfont="AboutBoxPID" textfontsize="14" textcolor="0 0 0" size1024="183 589 836 641" formattextusedatareplace="">$$20116$ ID ProductID</gadget> <gadget name="AboutBox-ScreenSeparator" type="gadget" size1024="178 587 846 588" background="ui\core_ui\metal_trim_bottom" z="11"/> <gadget name="AboutBox-ScreenSeparator2" type="gadget" size1024="181 352 849 353" background="ui\core_ui\metal_trim_bottom" z="11"/> </gadget> <gadget name="MODBox" type="dialog" windowzstyle="" size1024="0 0 1024 768" backgroundcolor="0 0 0" backgroundalpha="0.5" hidden="" dialogdefaultbuttonindex="0" dialogescapebuttonindex="0"> <gadget name="AboutBox-Background" type="gadget" size1024="162 64 880 696" background="ui\ingame\ingame_ui_parch" tilebackground="" z="1"> <gadget tilebackgroundhoriz="" name="objectivesdialog-BordersTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_top" size1024="248 32 784 96"/> <gadget tilebackgroundhoriz="" name="objectivesdialog-BordersBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottom" size1024="248 664 784 728"/> <gadget tilebackgroundvert="" name="objectivesdialog-BordersLeft" type="gadget" background="ui\ingame\ui_postgame_heavyborder_left" size1024="120 160 184 672"/> <gadget tilebackgroundvert="" name="objectivesdialog-BordersRight" type="gadget" background="ui\ingame\ui_postgame_heavyborder_right" size1024="848 160 912 672"/> <gadget name="objectivesdialog-BordersLeftTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_topleft" size1024="120 32 248 160" z="11"/> <gadget name="objectivesdialog-BordersLeftBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottomleft" size1024="120 600 248 728" z="12"/> <gadget name="objectivesdialog-BordersRightBottom" type="gadget" background="ui\ingame\ui_postgame_heavyborder_bottomright" size1024="784 600 912 728" z="12"/> <gadget name="objectivesdialog-BordersRightTop" type="gadget" background="ui\ingame\ui_postgame_heavyborder_topright" size1024="784 32 912 160" z="12"/> </gadget> <gadget name="AboutBox-Close" type="stateButton" size1024="436 646 596 678" bevelbutton="" z="101" statebuttonuseinternalstates="" textfont="PregameButtons" textfontsize="18" textcolor="255 255 255" textcenterhoriz="" textcentervert="" texturecoords="0 0 0.627450980392157 1"> $$18457$ <command>gadgetUnReal("MODBox")</command> <stateentry background="ui\core_ui\button_large_normal"/> <stateentry background="ui\core_ui\button_large_clicked"/> <stateentry background="ui\core_ui\button_large_high"/> <stateentry background="ui\core_ui\button_large_disable"/> </gadget> <gadget name="AboutBox-versiontext" type="formatText" textfont="AboutBoxVersion" textfontsize="18" textcolor="0 0 0" size1024="183 86 836 114" textwrapon="" formattextusedatareplace="">$$00019$$</gadget> <gadget name="AboutBox-copyrighttext" textwrapon="" type="formatText" textfont="AboutBoxCopyright" textfontsize="18" textcolor="0 0 0" size1024="183 120 836 547">$$00020$$</gadget> <gadget name="AboutBox-ScreenSeparator" type="gadget" size1024="178 587 846 588" background="ui\core_ui\metal_trim_bottom" z="11"/> <gadget name="AboutBox-ScreenSeparator2" type="gadget" size1024="181 352 849 353" background="ui\core_ui\metal_trim_bottom" z="11"/> </gadget> <gadget name="VersionString" type="gadget" size1024="45 743 230 767" textcolor="255 255 255" textfont="AboutBoxEntry" textfontsize="14" z="100"/> <gadget name="RegisteredString" type="gadget" size1024="22 201 400 228" textcolor="255 255 255" textfont="AboutBoxEntry" textfontsize="14" z="100"/> <gadget name="ScreenshotDialog" type="gadget" size1024="337 200 700 480" background="ui\editor\editor_background" bevel="" titlebar="$$20374$ a Screenshot" closebutton="" hidden="" windowzstyle="" moveable=""> <gadget name="ScreenshotTypeText" type="textBox" textfont="Arial nodrop" textfontsize="12" textcolor="0 0 0" size1024="337 228 418 248">$$20347$:</gadget> <gadget name="ScreenshotTypeRadioButtons" type="radioset" background="ui\editor\editor_background" radiosetbuttonsize1024="100 25" size1024="420 223 520 303"> <button command="configDef("jpegScreenshots")">$$20536$</button> <button command="configUndef("jpegScreenshots")">$$20537$</button> </gadget> <gadget name="ScreenshotQualityText" type="textBox" textfont="Arial nodrop" textfontsize="12" textcolor="0 0 0" size1024="527 229 604 249">$$20375$:</gadget> <gadget name="ScreenshotQualityRadioButtons" type="radioset" background="ui\editor\editor_background" radiosetbuttonsize1024="100 25" radiosetdefaultbuttonindex="2" size1024="606 222 686 322"> <button command="configSetInt("jpegScreenshotQuality", 25)">$$18579$</button> <button command="configSetInt("jpegScreenshotQuality", 50)">$$18846$</button> <button command="configSetInt("jpegScreenshotQuality", 100)">$$18578$</button> </gadget> <gadget name="ScreenshotIncludeText" type="textBox" textfont="Arial nodrop" textfontsize="12" textcolor="0 0 0" size1024="339 327 531 347">$$20376$:</gadget> <gadget name="ScreenshotIncludeInterface" type="checkButton" textfont="Arial nobold nodrop" textfontsize="12" textcolor="0 0 0" configindex="screenShotHideUI" size1024="412 352 587 372">$$20377$</gadget> <gadget name="ScreenshotIncludeCursor" type="checkButton" textfont="Arial nobold nodrop" textfontsize="12" textcolor="0 0 0" configindex="screenShotHideCursor" size1024="412 382 587 402">$$20378$</gadget> <gadget name="ScreenshotSeparator" type="gadget" background="UI\editor\menu_separator" size1024="347 422 690 432"/> <gadget name="ScreenshotTakeButton" type="button" bevelbutton="" textfont="Arial nodrop" textfontsize="12" size1024="428 439 529 464"> $$20379$ <command>gadgetUnReal("ScreenshotDialog") gadgetUnReal("MainMenuOptions") gadgetUnReal("BackgroundMainButtons") gadgetUnReal("HelpAndToolsSubMenu") screenshot() gadgetReal("BackgroundMainButtons") gadgetReal("MainMenuOptions") gadgetReal("HelpAndToolsSubMenu")</command> </gadget> <gadget name="ScreenshotCloseButton" type="button" bevelbutton="" textfont="Arial nodrop" textfontsize="12" size1024="555 439 656 464"> $$18457$ <command>gadgetUnReal("ScreenshotDialog")</command> </gadget> </gadget> </layout>
